Hose & Fitting Assembly

Air hoses and hydraulic hoses, combined with matching fittings and interfaces in one assembly route.

Hose crimping operation in the ZJD factory

For procurement & engineering teams

Is this the right process for your project?

Start here for flexible air or fluid connections. Specify media, temperature, pressure or vacuum and fitting orientation so the hose and connections can be reviewed as one system.

The hose and its fittings are one product system. ZJD makes flexible air connections and hydraulic hose assemblies, then checks materials, connections and operating requirements for each job.

Typical outputs: Air hose assemblies · Hydraulic hose assemblies · Integrated hose fittings and flanges · Hose-to-metal connections.

Manufacturing example

Air-duct hoses

Flexible connections for air-flow and ventilation systems. Size, construction and test requirements are confirmed from the customer specification.

Hose and interface preparation: Prepare the specified flexible duct body and its connections.
Interface assembly: Join the flexible section to the required end interfaces.

Confirm before quotation: Type / model; Cross-section and nominal dimensions; Material / construction; Length and connection geometry; Temperature range; Pressure / vacuum limits; Applicable fire / smoke requirements.

Manufacturing example

Hydraulic hoses

Flexible fluid connections for hydraulic equipment. Hose, fitting, fluid, pressure and temperature requirements are reviewed together.

Cutting & fitting preparation: Prepare the hose length and matching fitting system.
Crimping & assembly: Assemble the connections using the specified hose-and-fitting requirements.

Confirm before quotation: Type or model; Hose ID or nominal size; Tube, reinforcement and cover; Compatible fluid; Working and test pressure; Operating temperature range; Fitting standard and orientation; Minimum bend radius.

Representative product types, not stock specifications or named customer case studies. Manufacturing scope and acceptance criteria are agreed for each project.

CNC Machining Integrated OEM Assembly

Not ready to share drawings? Start with a short project description. An NDA can be agreed before sharing confidential files. How we handle enquiry information.

Manufacturing processes

How we make your parts.

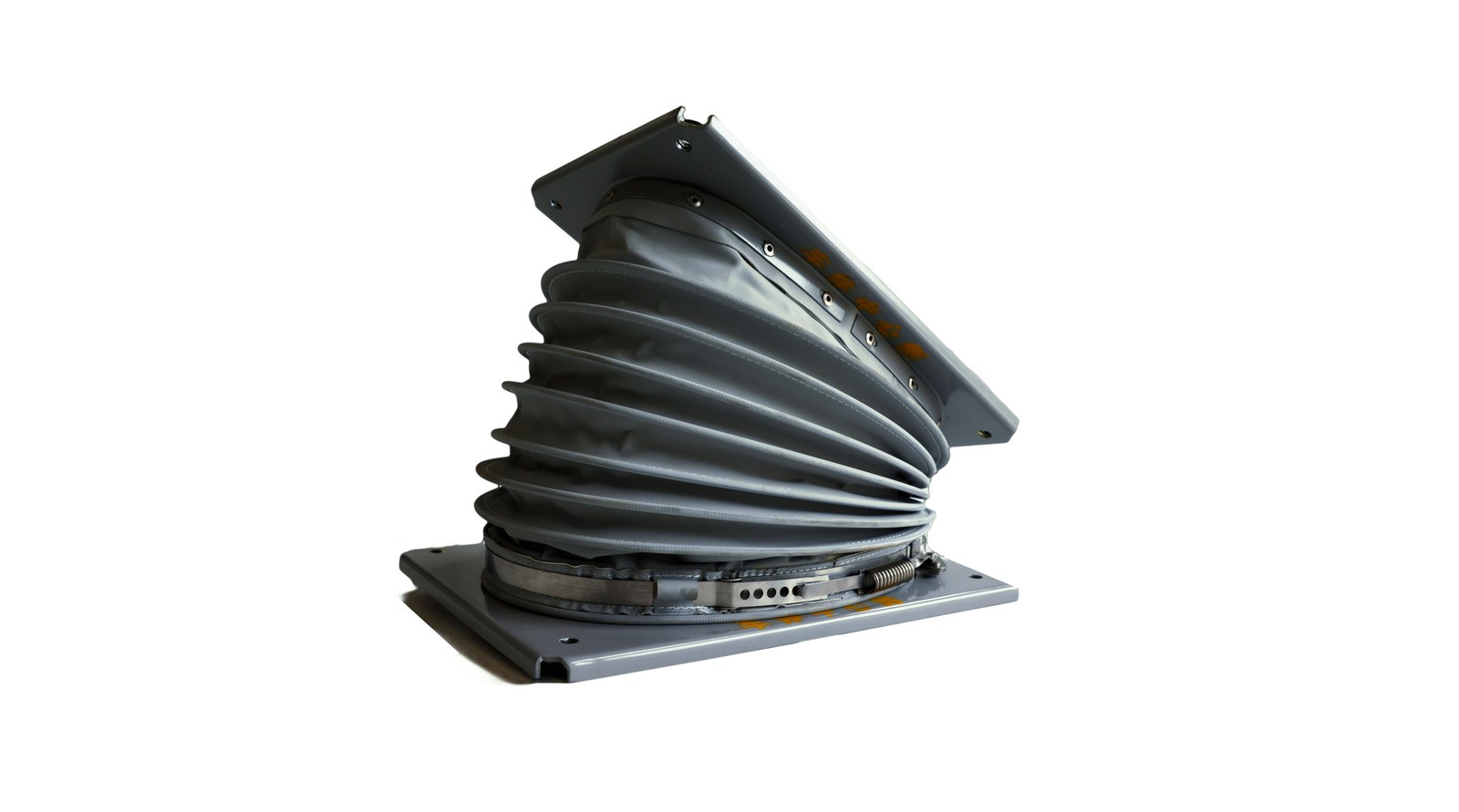

Examples of flexible air duct hoses — Flexible air-duct hose examples

Hose preparation

We check the hose type, length, fitting direction and assembly requirements from the drawing or specification.

Key equipment: Hose cutting equipment: Q-51; flexible duct preparation equipment.

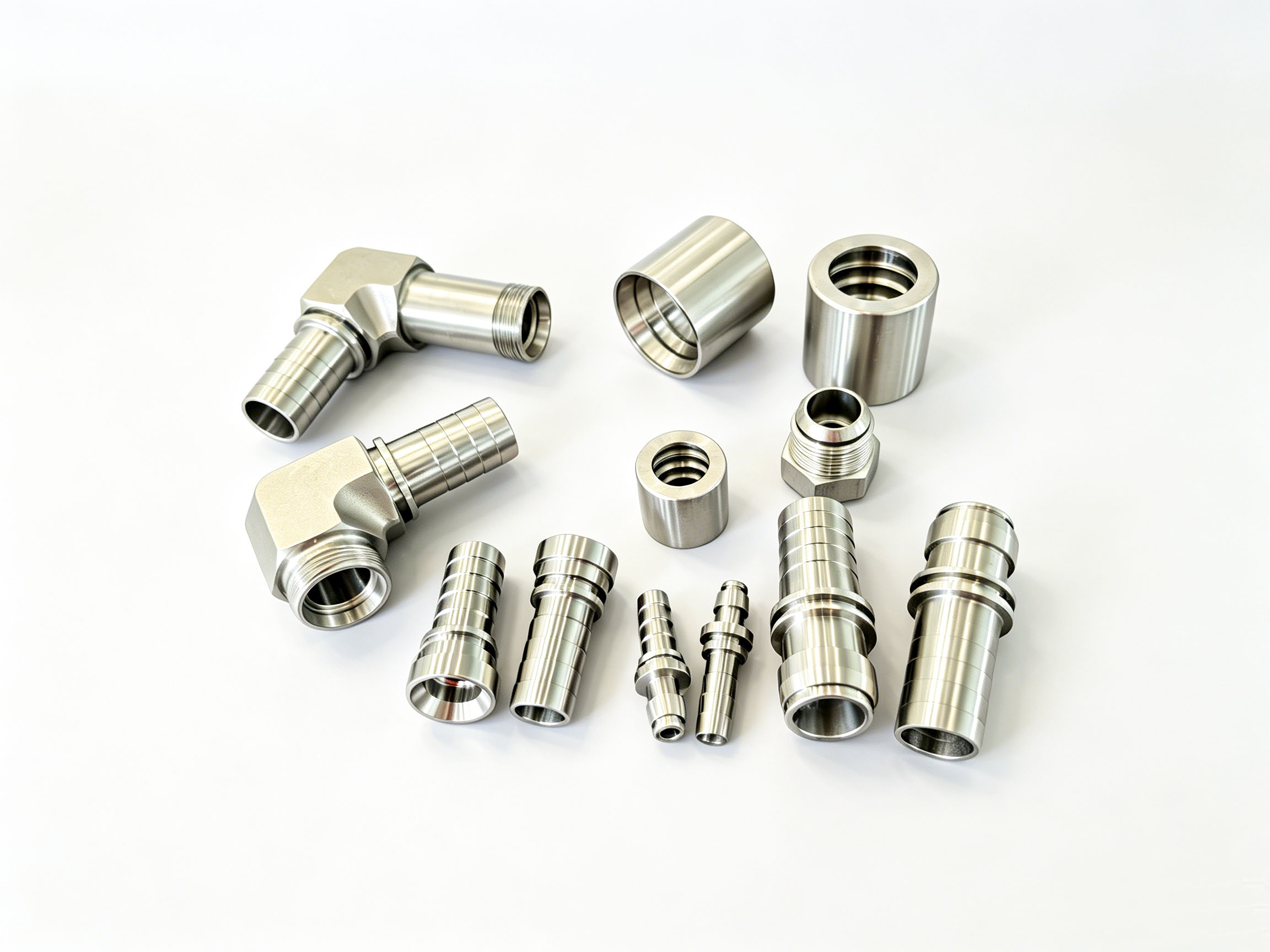

Hose end fittings and interfaces — End fitting examples

Fitting preparation

End fittings, flanges and metal interfaces are prepared as part of the specified hose assembly.

Key equipment: In-house CNC machining and component preparation.

Hose crimping equipment and operator — Fitting and hose assembly

Fitting & interface assembly

We connect the hose and fittings, check their direction and complete the required equipment interfaces.

Key equipment: Automatic hose crimping machine: KBX-120.

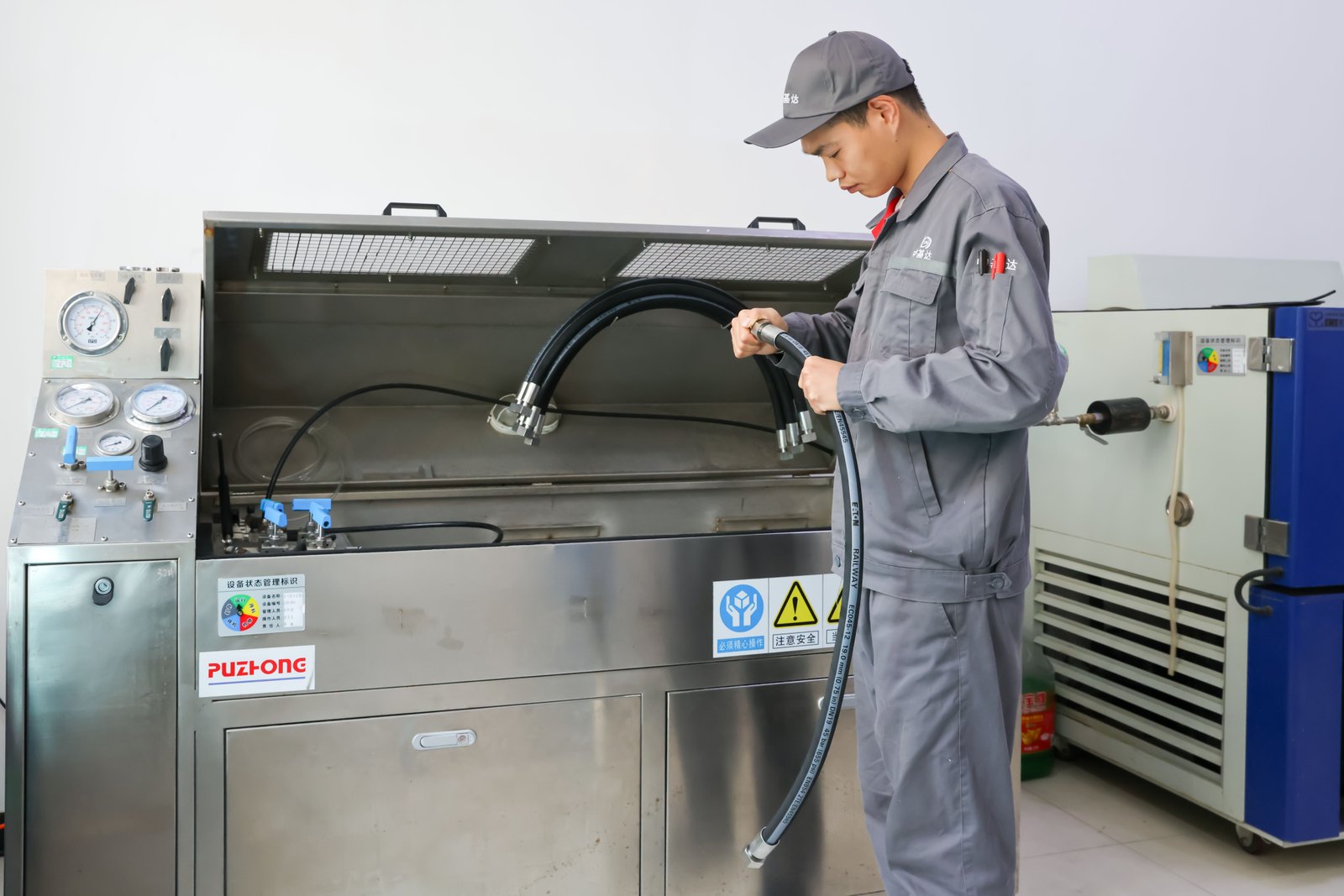

Pressure and sealing test bench with operator — Assembly testing

Inspection & testing

Connections and completed assemblies are checked against the inspection plan. Pressure, sealing and other functional tests are selected for the hose and its application.

Key equipment: TPU-02-100-2B water/air test bench and hydraulic test resources.

Equipment behind the work

Selected equipment from the factory register, 29 June 2026.
Equipment	Models / resources	Purpose
Hose cutting	Q-51	Preparing hose lengths.
Hose crimping	KBX-120	Securing compatible hose and fitting connections.
Pressure and sealing tests	TPU-02-100-2B; hydraulic test bench	Checking assemblies to the agreed test plan.

Explore inspection equipment and test methods

Materials & inputs

Air hose systems · Hydraulic hose systems · Metal fittings and interfaces · Customer-specified components subject to review

Working range

Diameter, material, fitting system, pressure and test method vary by application. ZJD confirms the required hose, tooling and test plan from the customer specification before accepting the project.

Precision & quality control

Checked through production.

We check critical dimensions, component fit and the finished work against the drawing and inspection plan.

View inspection controls & certificates

Component, fitting and orientation checks
Temperature and air-tightness testing where required
Pressure, burst and sealing testing where required
Tensile testing where required
Duct and air-flow performance testing where required
Identification, traceability and agreed records

Certificates support their stated management or process scope. Tolerances and acceptance criteria are confirmed for each part.

Product examples at a glance

Metal-braided hose assemblies with angled metal end fittings

Hose & fitting assemblies

Air-duct hoses

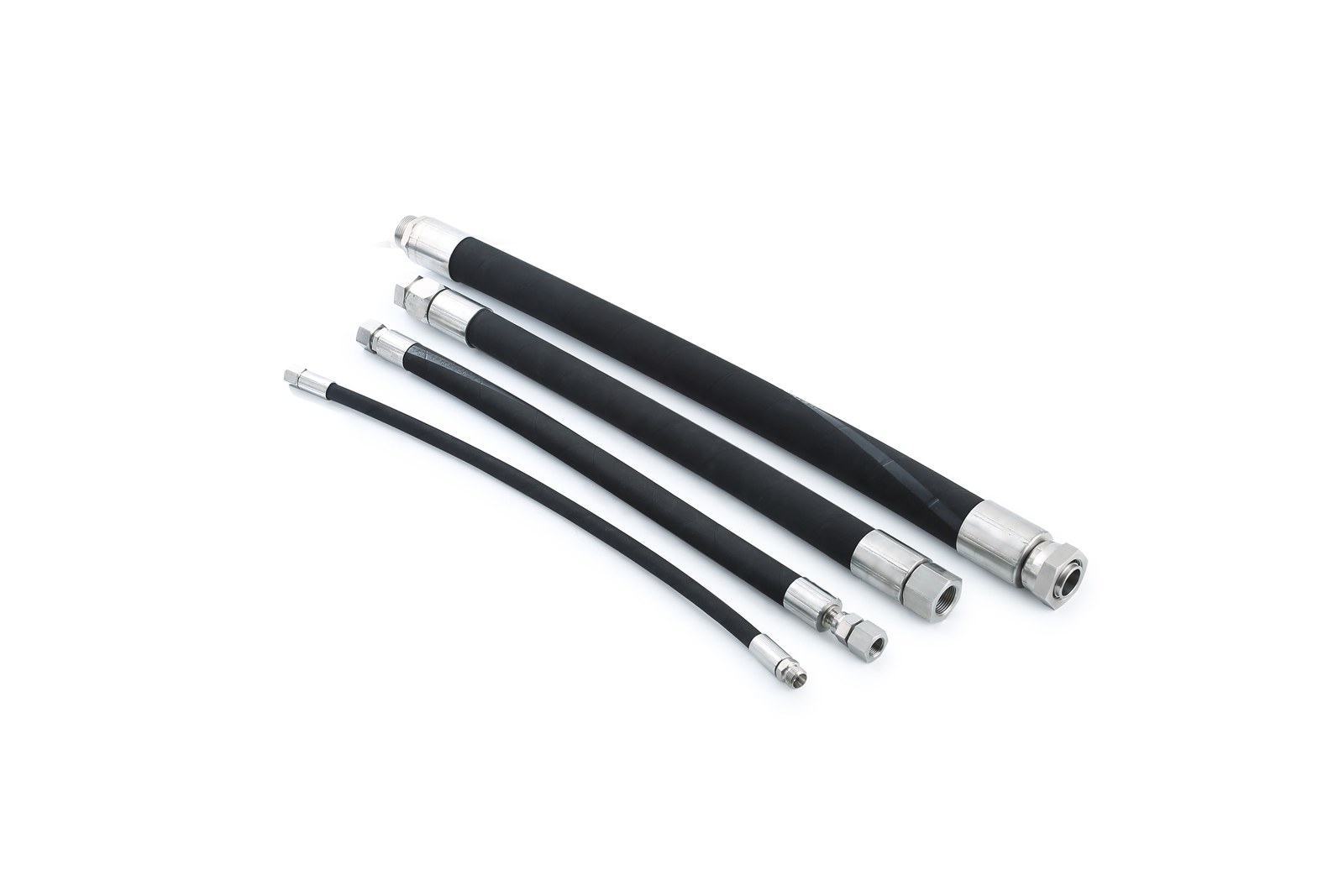

Hydraulic hose assemblies with crimped end fittings made by ZJD

Hydraulic hoses

For a detailed quotation

Hose and fitting specification
Assembly drawing and length
Pressure and media
Test method and acceptance limit
Quantity and target timing
Packing and identification requirements

Before you request a quote

Which hose types do you manufacture and assemble?

We manufacture and assemble air hoses and hydraulic hoses with their specified fittings and interfaces. Materials, operating conditions and testing are confirmed for the application.

Hose and fitting assembly

Can you provide inspection reports in English?

Chinese original inspection and test reports with English translations are available on request. The report scope and acceptance criteria are agreed before production.

Quality documentation

Do you accept third-party inspection?

Yes. We welcome your nominated inspection organization and agree the inspection scope and timing in advance.

Inspection arrangements

Let's review your project.

Tell us what you need. Drawings and technical details can follow.

Request a quote
