Cutting, bending, welding and finishing for sheet metal parts and assemblies.
For procurement & engineering teams
Start here for parts made from cut and formed sheet or joined metal sections. Confirm material, bend geometry, weld requirements and finish together: each affects the manufacturing route and final fit.
ZJD combines laser cutting, CNC bending, riveting, welding and finishing coordination. Welding supports the completed fabricated part or assembly; the route is selected from the drawing, material and project standard.
Typical outputs: Enclosures and cabinets · Frames and housings · Brackets and panels · Duct and air-flow assemblies · Large fabricated structures.
Manufacturing example

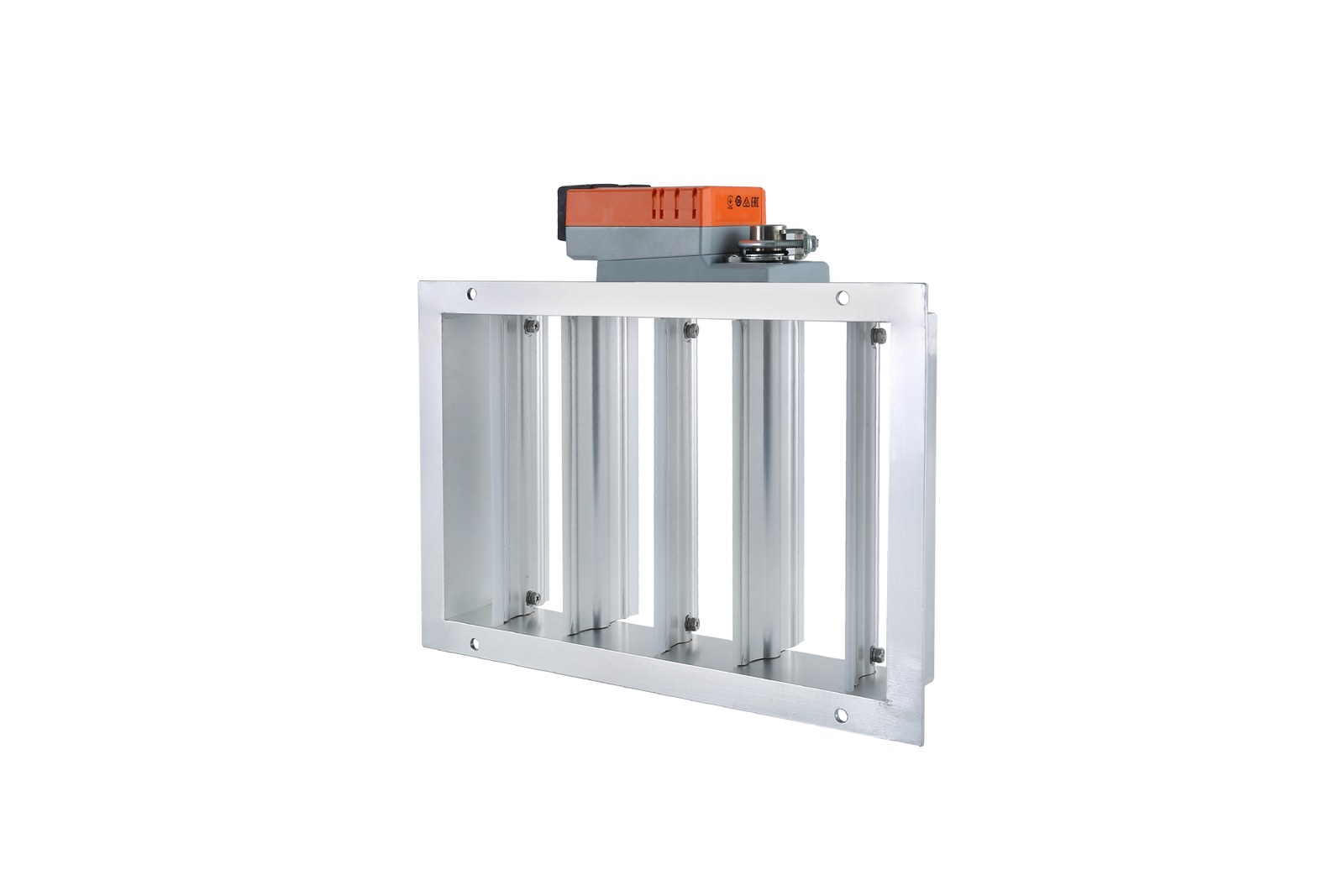

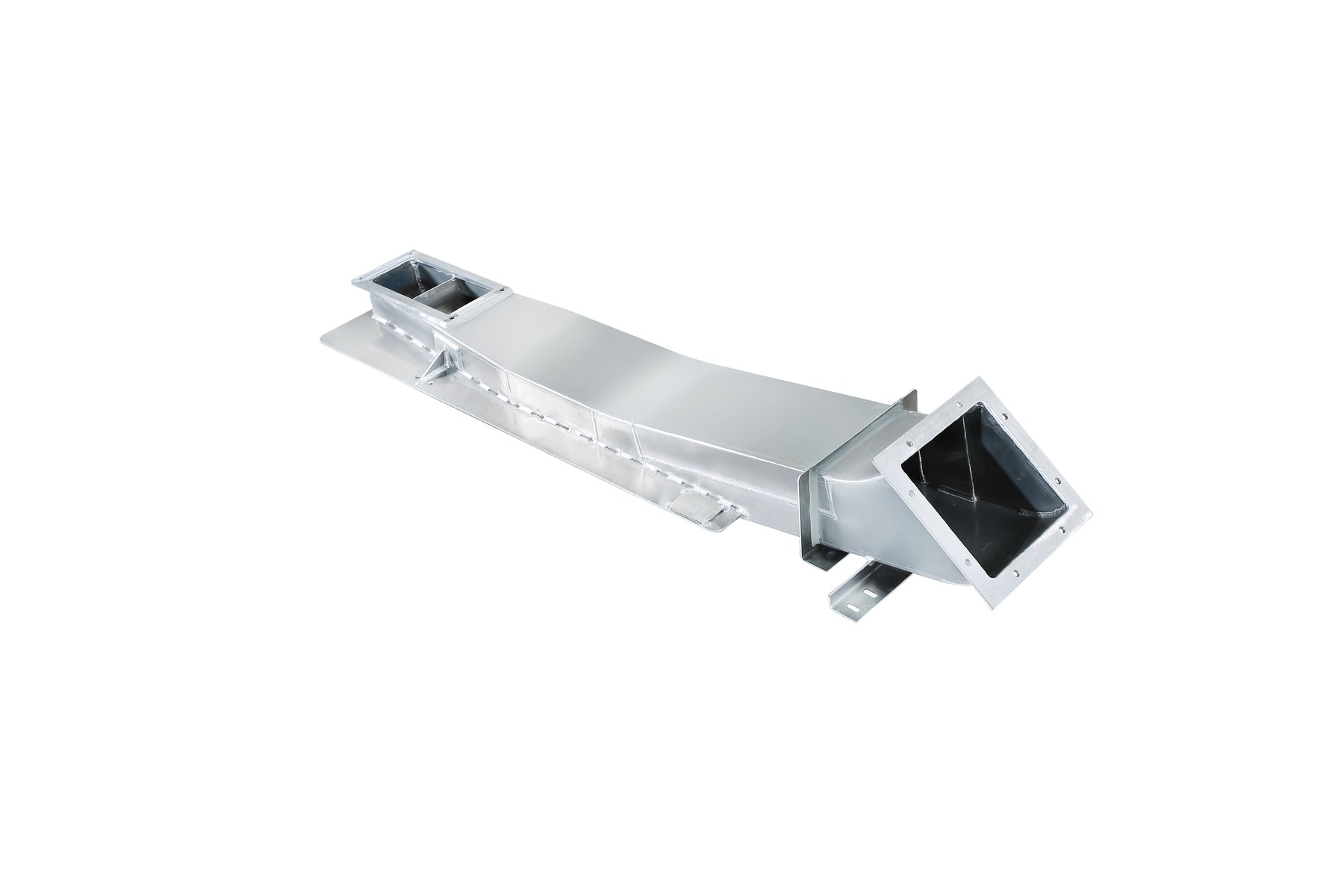

Rigid air-flow sections and equipment ventilation interfaces.
Confirm before quotation: Material / grade; Sheet thickness; Overall dimensions; Flange / interface dimensions; Surface treatment; Dimensional and sealing requirements.
Manufacturing example

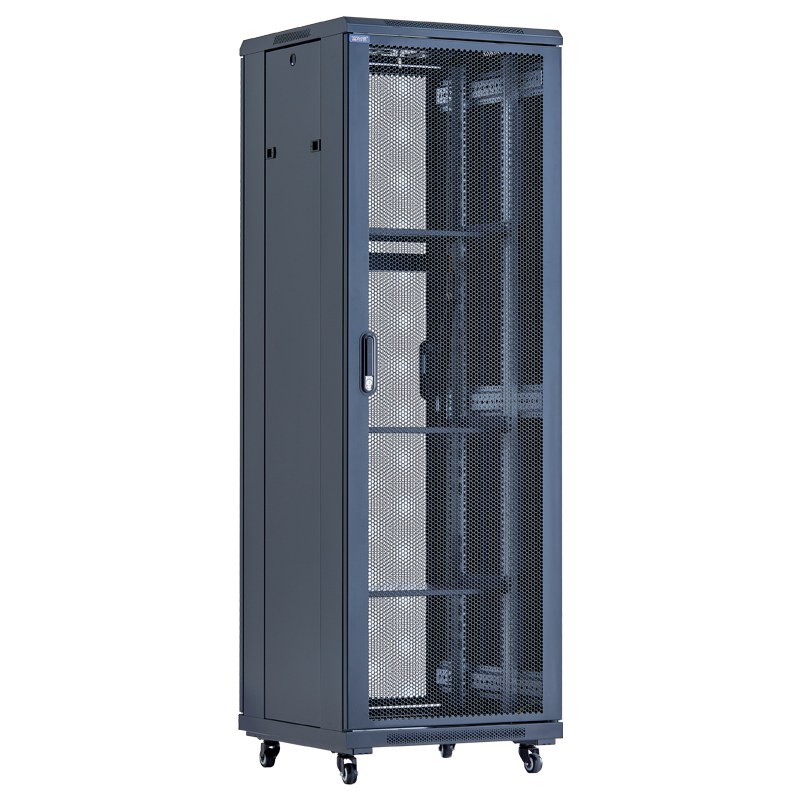

Cabinet structures and housings for industrial equipment.
Confirm before quotation: External dimensions; Material / thickness; Panel and mounting layout; Coating / finish; Load requirements; Ingress protection requirement, if applicable.
Representative product types, not stock specifications or named customer case studies. Manufacturing scope and acceptance criteria are agreed for each project.
Not ready to share drawings? Start with a short project description. An NDA can be agreed before sharing confidential files. How we handle enquiry information.
Manufacturing processes
Flat patterns and cut features are prepared to the drawing before forming and downstream assembly.
Key equipment: Fiber laser cutters: FCP3015D-3000W and MPS-3015C-H6000.
Forming sequences are reviewed for geometry, repeatability, tooling access and subsequent assembly.

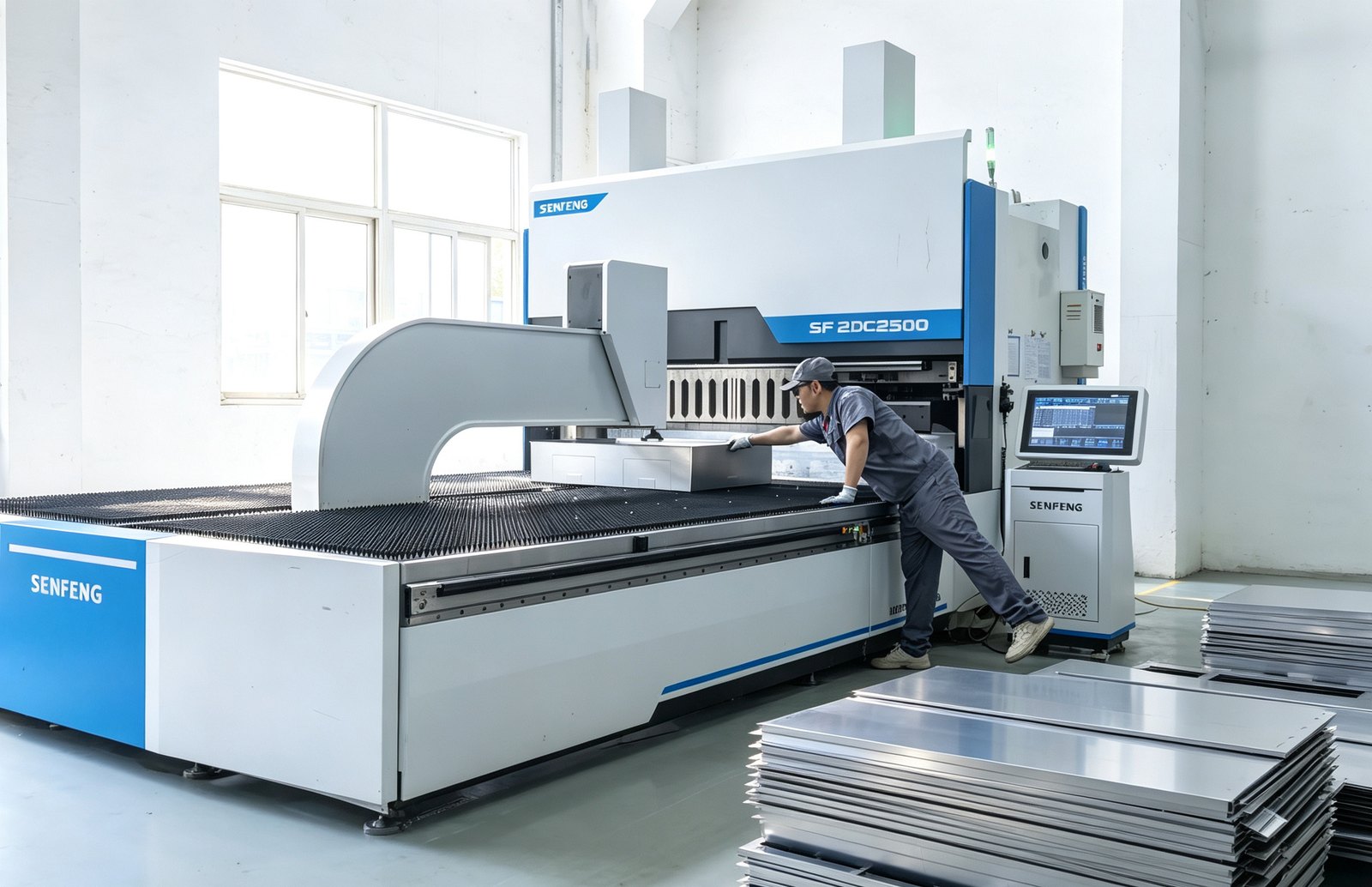

Key equipment: Press brakes: TPR8 100/3100 and 30T/1600. Bending center: BDC2500.

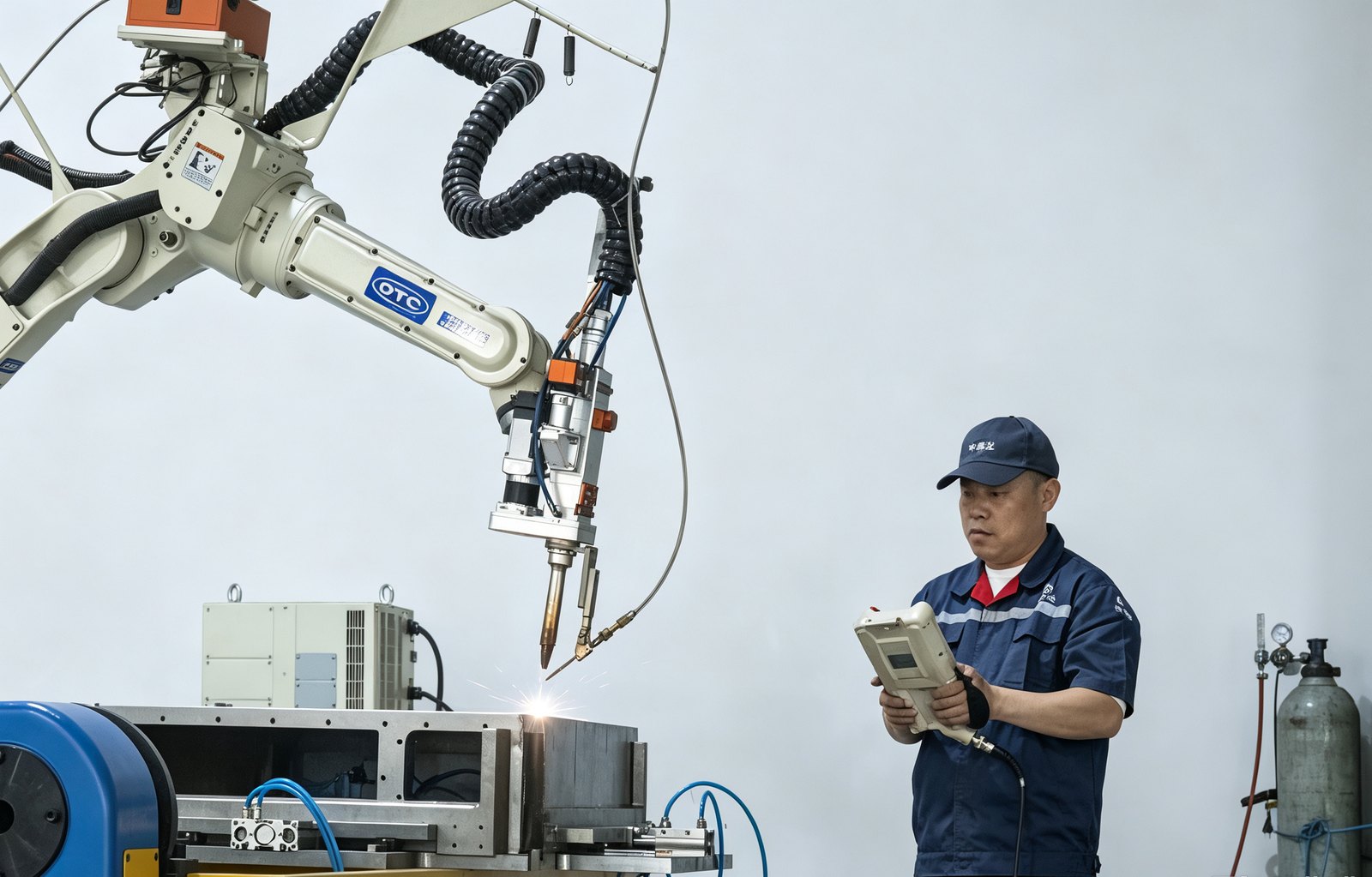

Manual, robotic or laser welding may be used where appropriate. Method, qualification and inspection are confirmed per project.
Key equipment: FD-V25H welding robot; TIG and laser welding equipment.
Grinding, spray painting and sandblasting are carried out in-house. Other surface treatments are coordinated with outside suppliers to the agreed specification.

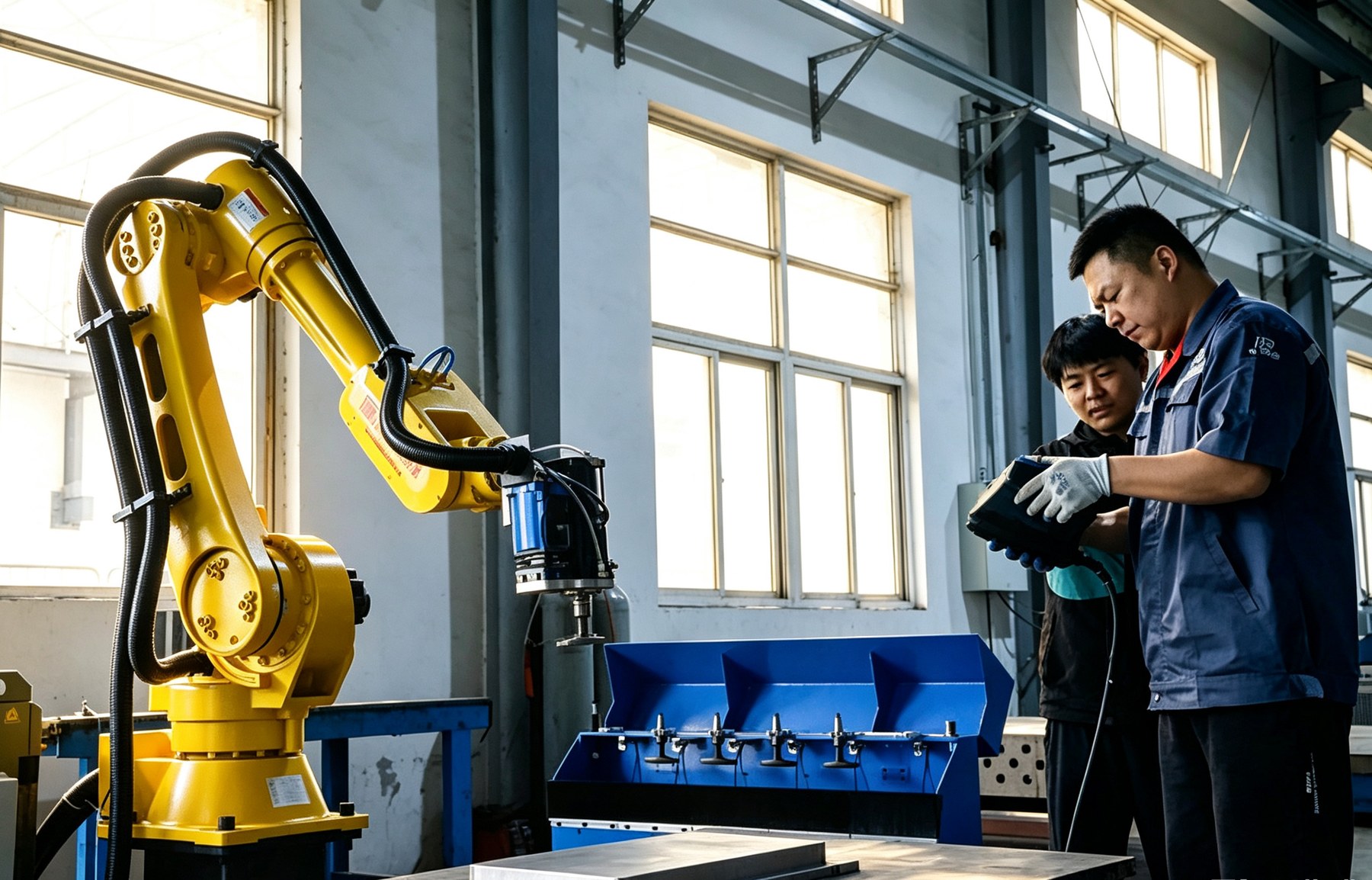

Key equipment: Grinding robot, JS-KMT1200 dry grinding table and 9070B sandblasting machine.
| Equipment | Models / resources | Purpose |
|---|---|---|
| Fiber laser cutters | FCP3015D-3000W; MPS-3015C-H6000 | Cutting sheet profiles and openings. |
| Bending equipment | TPR8 100/3100; 30T/1600; BDC2500 | Forming panels, brackets and enclosure sections. |
| Riveting and welding | SP8-500A; YC-1610-86; FD-V25H welding robot; TIG and laser welders | Joining sheet metal and structural components. |
| Surface preparation | Grinding robot; JS-KMT1200; ZRD-P980; 9070B | Grinding, polishing and sandblasting. |
Carbon steel · Stainless steel · Aluminum · Customer-specified grades subject to drawing review
ZJD normally fabricates sheet metal below 5 mm thick. Overall part size, material, forming route and batch size are confirmed from the drawing before quotation.
Precision & quality control
We check critical dimensions, component fit and the finished work against the drawing and inspection plan.
View inspection controls & certificatesCertificates support their stated management or process scope. Tolerances and acceptance criteria are confirmed for each part.
Grinding, spray painting and sandblasting are carried out in-house. Other treatments are coordinated with outside suppliers to the agreed specification.
Metal fabricationChinese original inspection and test reports with English translations are available on request. The report scope and acceptance criteria are agreed before production.
Quality documentationYes. Start with the application, approximate size, material and quantity. Detailed drawings can follow when you are ready for a technical review.
